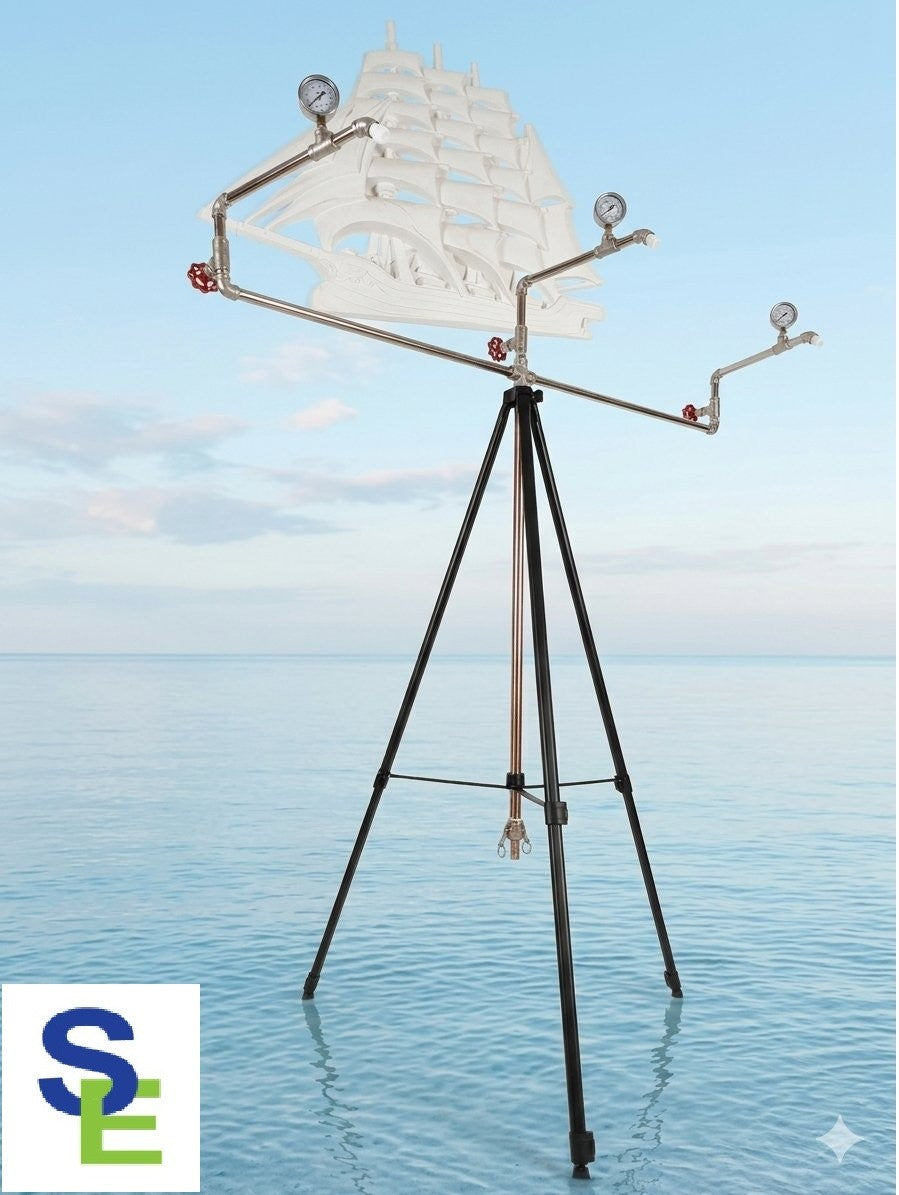

UL Rain Spray Test Apparatus for Outdoor Enclosure Waterproof Testing

UL Rain Spray Test Apparatus

Professional rain spray test apparatus designed for waterproof performance verification of outdoor electrical enclosures and equipment, fully compliant with UL and NEMA standards.

Applicable Standards

• UL 1598 / CSA 250 – Luminaires
• UL 50E / CSA 94.2 – Enclosures for Electrical Equipment
• UL 8750 / CSA 250.13 – LED Equipment
• UL/CSA 62368-1 – Audio/Video, IT & Communication Equipment
• NEMA 250 – Enclosures for Electrical Equipment

Applications

• Rain waterproof testing for outdoor electrical enclosures
• Outdoor IP protection verification on Street lighting fixture, EVSE Changing stations, and Electrical control panels, etc.
• Outdoor equipment weatherproof compliance testing
• Similar to IEC 60529 IPX3/IPX4 rain test methodology

Key Features

• ✅ Compliant with UL, CSA, and NEMA standards
• ✅ Precision-engineered for consistent, repeatable rain simulation
• ✅ Ideal for compliance testing labs and manufacturers
• ✅ Includes UL-standard rain spray nozzle head
• ✅ Water pressure gauge: 0 to 15psi (test pressure= 5psi).

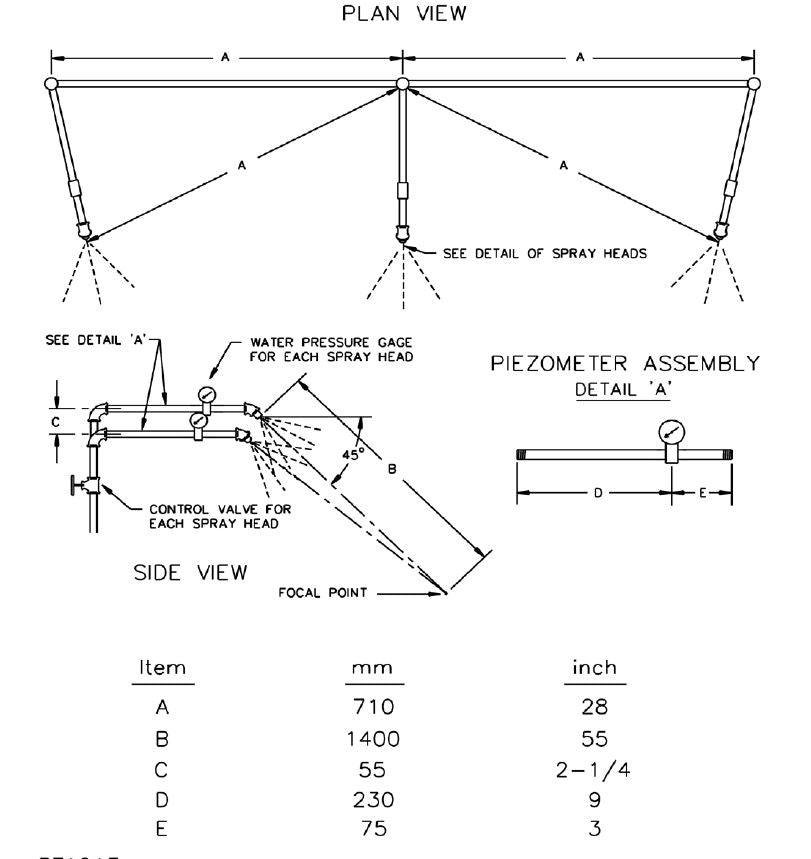

• ✅ The height of three spray heads is adjustable up to 2.75m (9.0ft).
