IPX3 & IPX4 Water Spraying Test Device | IEC 60529 Figure 5

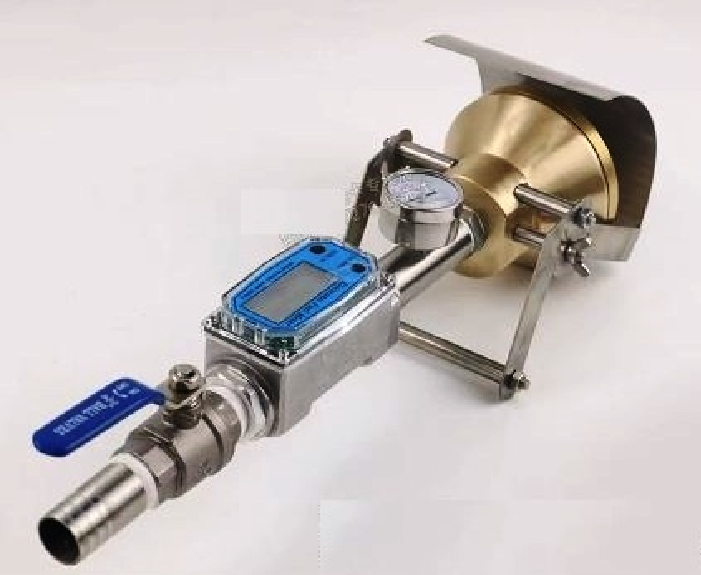

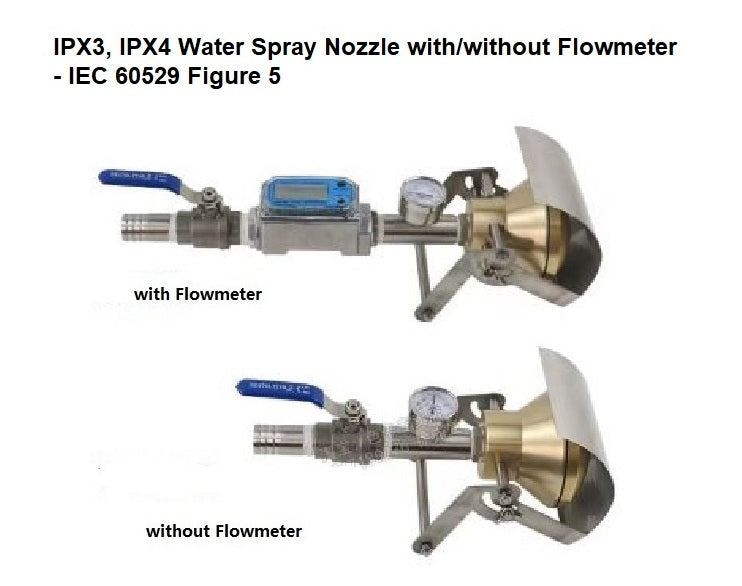

IPX3 & IPX4 Water Spraying Test Device

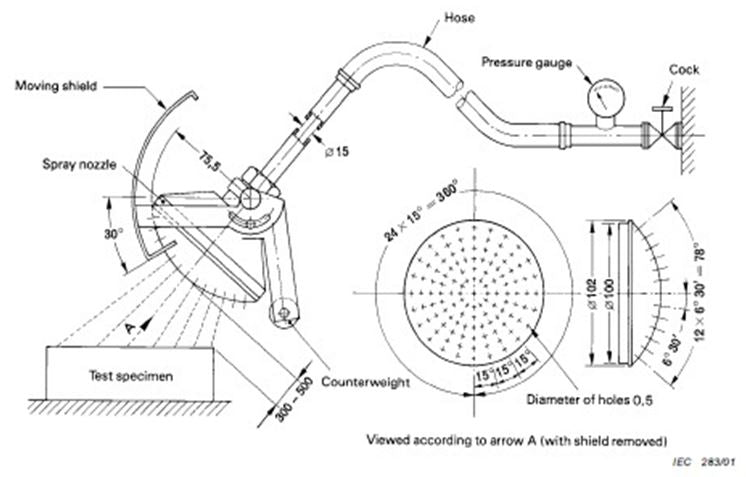

Professional oscillating tube water spraying test device for verifying IPX3 and IPX4 ingress protection ratings, fully compliant with IEC 60529 Figure 5 requirements.

Applicable Standards

• IEC 60529 – Degrees of Protection Provided by Enclosures (IP Code)
• IPX3 – Protection against spraying water up to 60° from vertical
• IPX4 – Protection against splashing water from any direction

Applications

• IP rating verification for consumer electronics, appliances, and luminaires
• Electrical enclosure spray resistance testing
• Product compliance testing for manufacturers and certification labs
• Pre-certification testing before third-party lab submission

Key Features

• ✅ Compliant with IEC 60529 Figure 5 specifications
• ✅ Oscillating tube design for uniform spray coverage
• ✅ Adjustable spray angle for IPX3 and IPX4 testing
• ✅ Consistent flow rate for repeatable, reliable results
